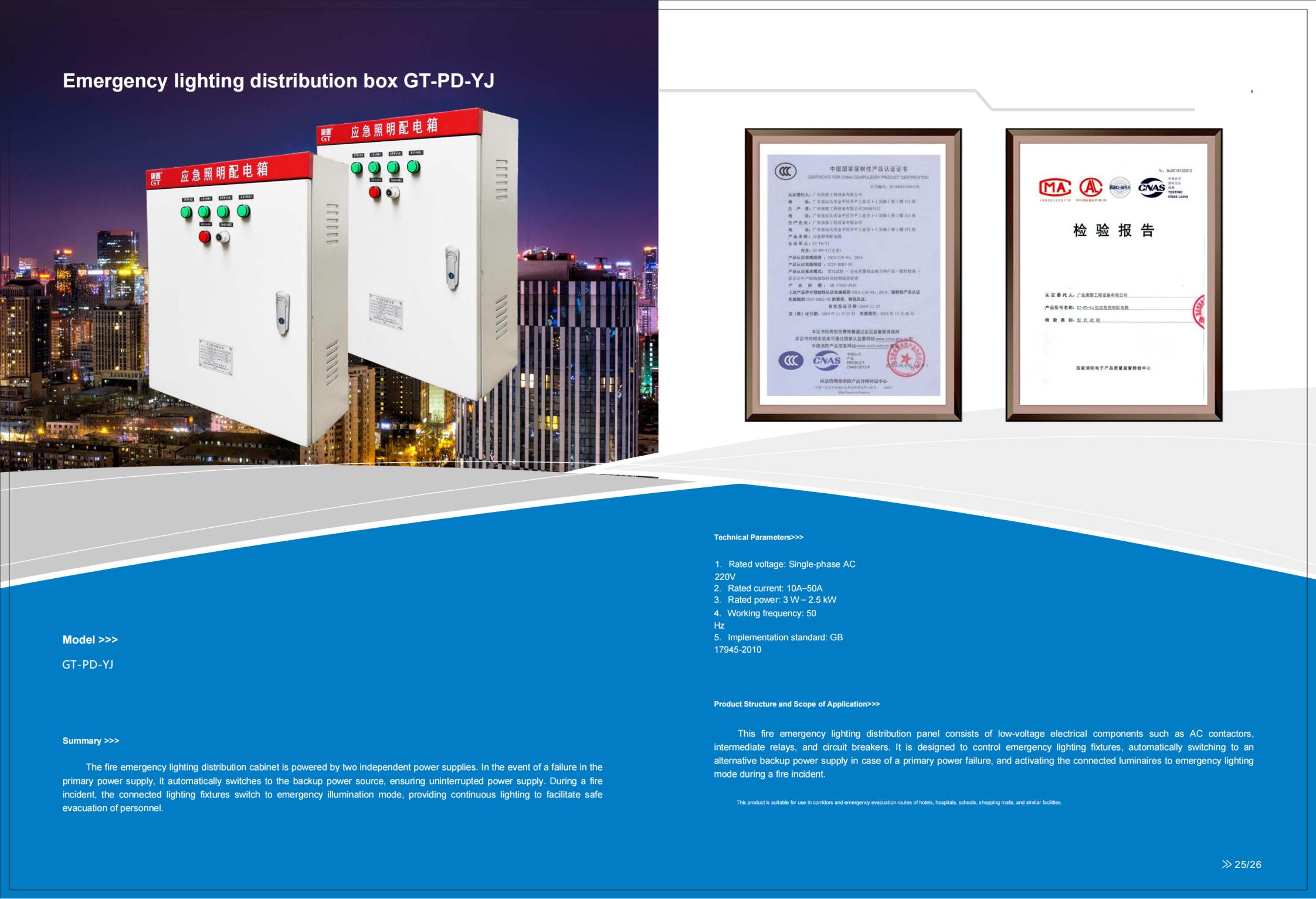

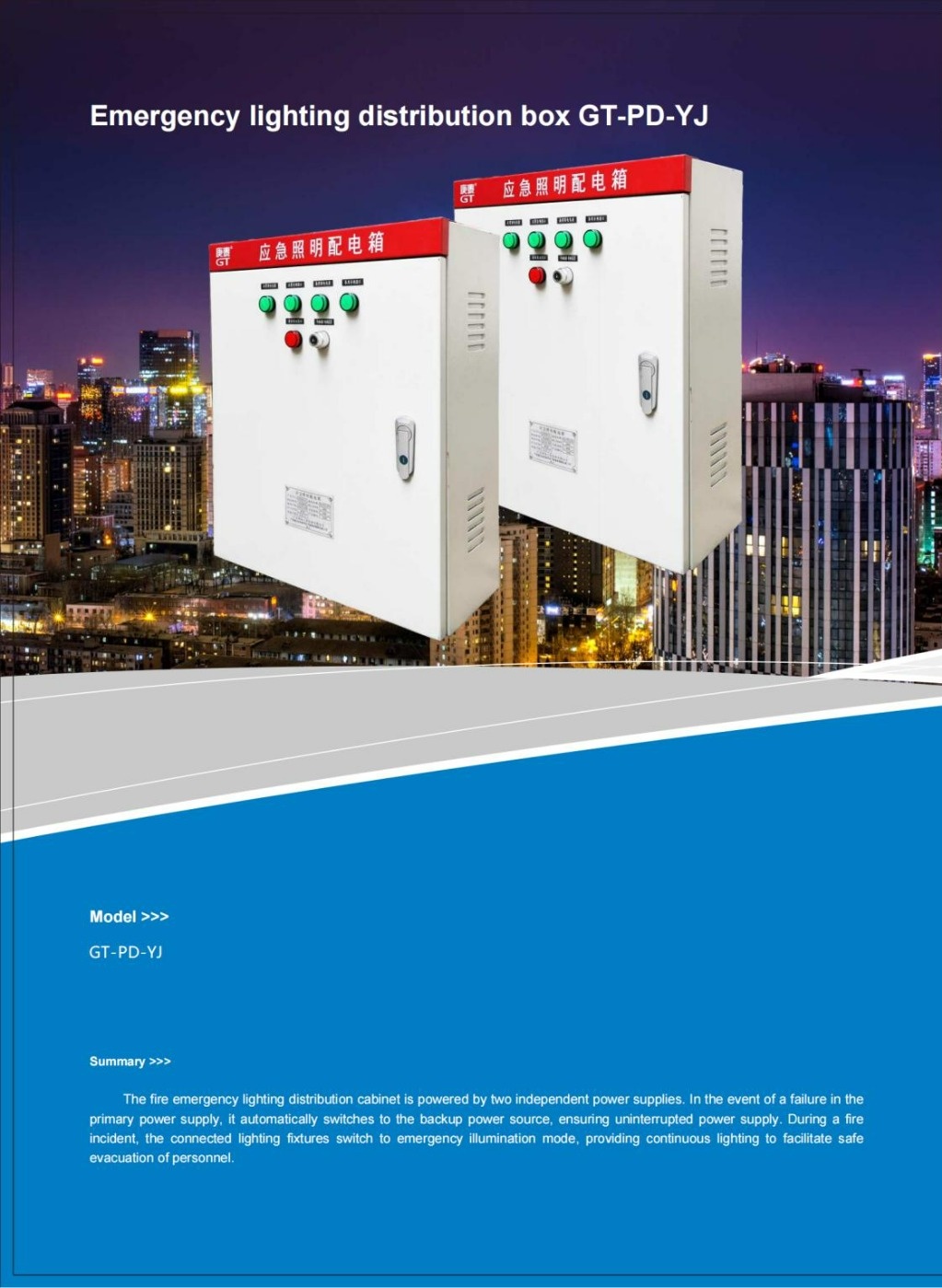

Emergency lighting distribution box GT-PD-YJ
The fire emergency lighting distribution cabinet is powered by two independent power supplies. In the event of a failure in the
primary power supply, it automatically switches to the backup power source, ensuring uninterrupted power supply. During a fire
incident, the connected lighting fixtures switch to emergency illumination mode, providing continuous lighting to facilitate safe
evacuation of personnel.
1．Rated voltage: Single-phase AC
220V
2．Rated current: 10A–50A
3．Rated power: 3 W – 2.5 kW
4．Working frequency: 50
Hz
5．Implementation standard: GB
17945-2010
This fire emergency lighting distribution panel consists of low-voltage electrical components such as AC contactors,
intermediate relays, and circuit breakers. It is designed to control emergency lighting fixtures, automatically switching to an
alternative backup power supply in case of a primary power failure, and activating the connected luminaires to emergency lighting
mode during a fire incident.
This product is suitable for use in corridors and emergency evacuation routes of hotels, hospitals, schools, shopping malls, and similar facilities.
Summary >>>
Product Structure and Scope of Application>>>

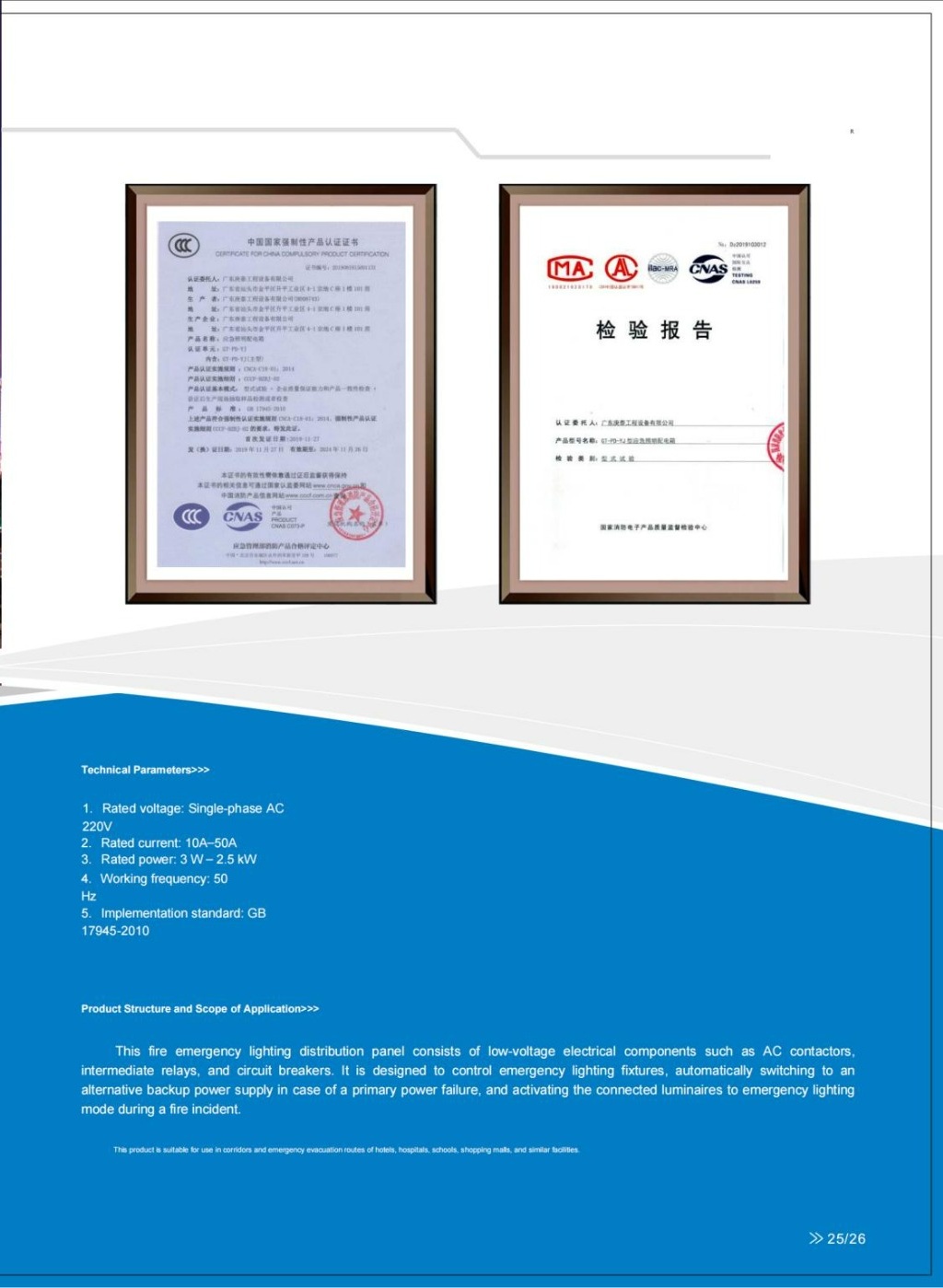

Technical Parameters>>>
25/26
Model >>>
GT-PD-YJ
